Περιγραφή προϊόντων

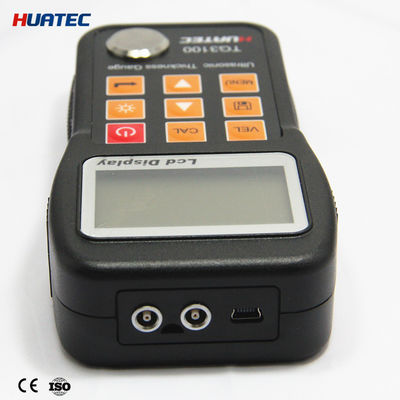

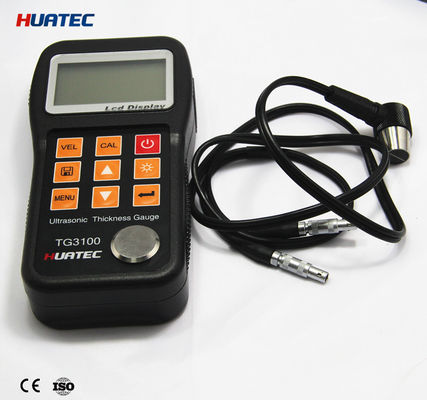

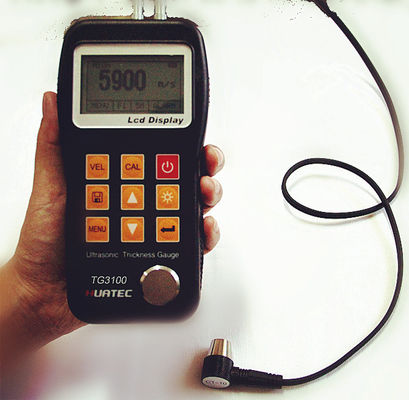

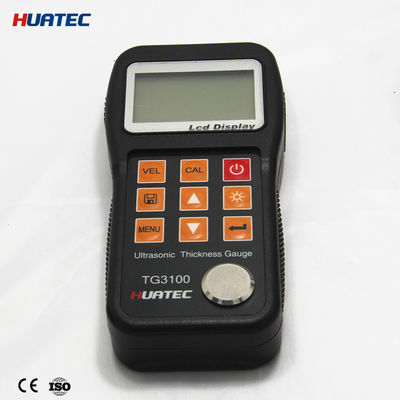

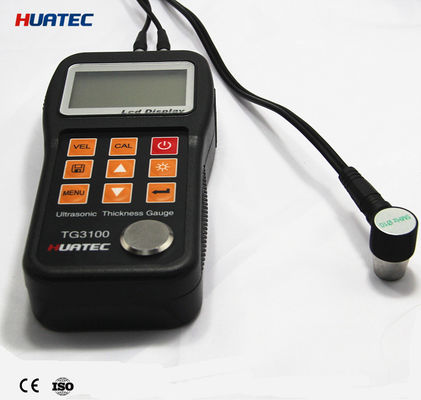

Scan Mode 0.75 - 300mm Ut Thickness Gauge Ultrasonic Thickness Gauge TG3100 For Epoxies, Glass


Scope of applications

Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.

The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields


Measuring Principle

The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material,reflect form the back or inside surface, and be returmed to the transducer.The measured two-way transit time is divided by two to account for the down-and-back travel path,and then multiplied by the velocity of sound in the material.


Features
1.Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
2.Transducer models are available for special application, including for coarse grain material and high temperature applications.
3.Two-Point Calibration function.
4.Two work modes: Single point mode and Scan mode.
5.Coupling status indicator showing the coupling status.

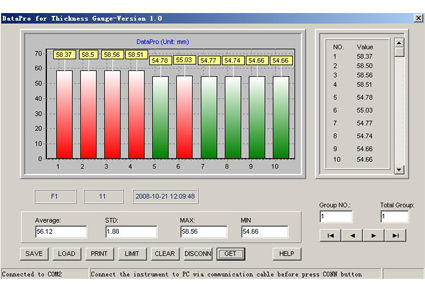

6.Optional software to process the memory data on the PC.
7.Optional thermal mini-printer to print the measured data via RS232 port.

Specifications
1.Display:4.5 digits LCD with EL backlight.
2.Measuring Range:0.75～300mm (in Steel).
3.Sound Velocity Range: 1000~9999 m/s.
4.Resolution: 0.1/0.01mm
5.Accuracy: ±(0.5%Thickness+0.04)mm, depends on materials and conditions
6.Units: Metric/Imperial unit selectable.
7.Four measurements readings per second for single point measurement, and ten per second for Scan Mode.
8.Memory for up to 20 files (up to 99 values for each file) of stored values.
9.Power Source:Two AA size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).
10.Communication:RS232 serial port.
11.Outline dimensions:150×74×32 mm.
12.Weight:245g

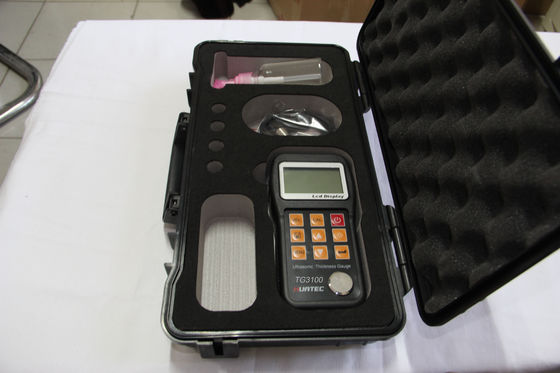

Configuration

No
Item
Quantity
Note


Standard Configuration
1
Main body
1

2
Transducer
1
Model: N05/90°
3
Couplant
1

4

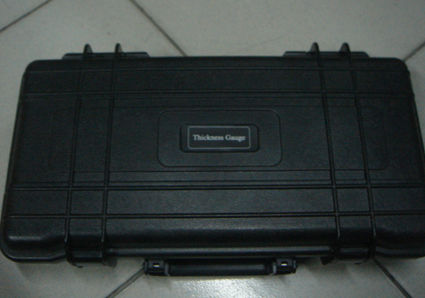

Instrument Case
1

5
Operating Manual
1

6
Alkaline battery
2
AA size
7



8





Optional
Configuration
9
Transducer: N02

Appendix A
10
Transducer: N07

11
Transducer: HT5

12
Mini thermal printer
1

13
Print cable
1
14
DataPro Software
1
15
Communication Cable
1

Probe optional (Appendix A):



Model
Freq. MHz
Diam. Mm
Measuring range
Lower limit
Description
N02
2
22
3.0mm-300.0mm (in steel)
20
For thick, highly attenuating, or highly scattering materials
N05
5
10
1.2mm-230.0mm (in steel)
￠20mm×3.0mm
Normal measurement
N05/90°
5
10
1.2mm-230.0mm (in steel)
￠20mm×3.0mm
Normal measurement
N07
7
6
0.75mm-80.0mm (in steel)
￠15mm×2.0mm
For thin pipe or small curvature
pipe wall thickness measurement
HT5
5
14
3mm-200mm (in steel)
30
For high temperature measurement (up to 300℃)
